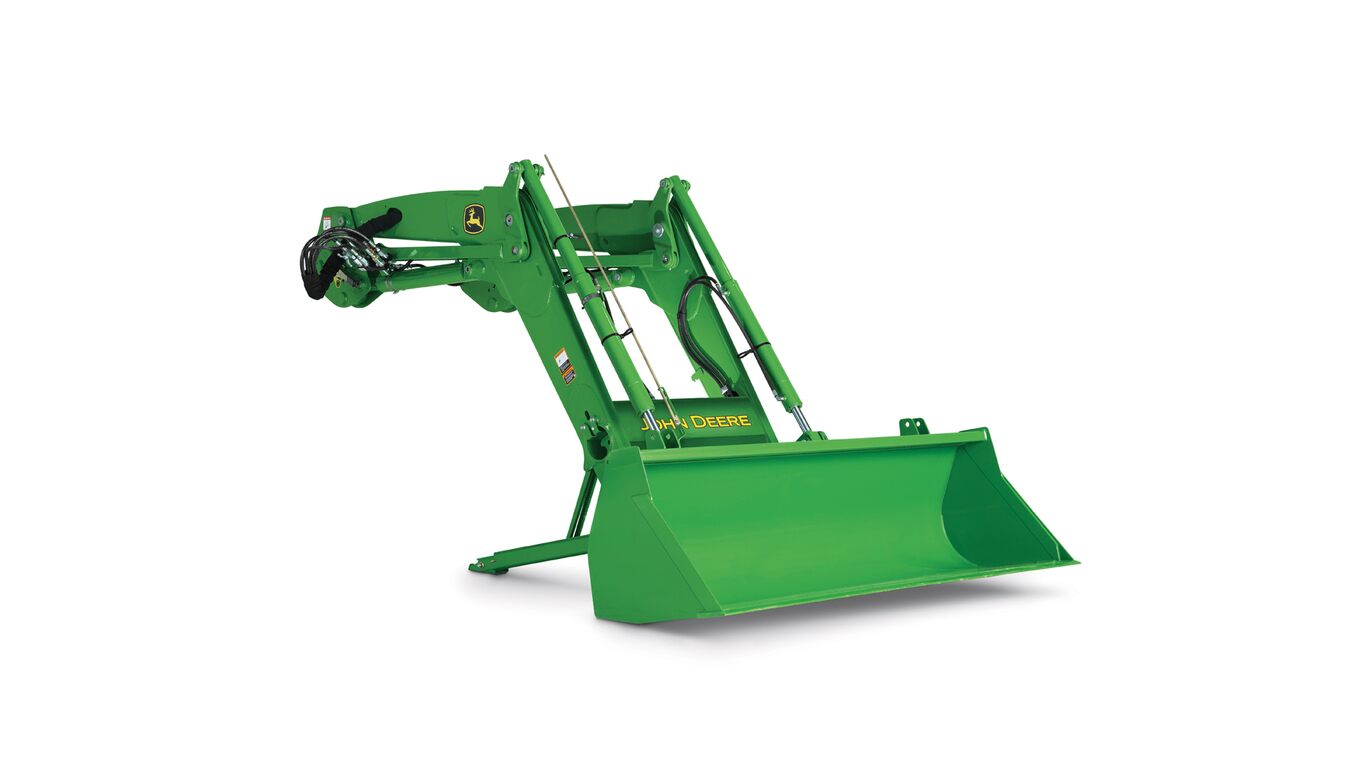

640r loader
Loader
- Tool-free removal and attachment with just a few, simple steps
- Frame design that allows for maximum maneuverability
- Repositioned leveling links for better visibility
- Automatic Mast Latch system for quick change from loader to three-point implements
View Product Brochure
Features
Single-point hydraulic connection on the 600R LoaderThe R-Series Loaders feature a single-point hydraulic connection that saves the operator time when attaching or detaching the loader. This feature also incorporates the connection point for any electrical needs as well as the hydraulic lockout valve. With all hydraulic and electrical connections in one location, installation is quickly completed with the pull of a handle.
NOTE: Before disconnecting the hydraulic connection between the loader and the tractor, it is necessary to release the hydraulic pressure.
Single-point hydraulic connection (open)
Single-point hydraulic connection (closed)
600R Loader with concealed oil lines
The R-Series Loaders have been redesigned to route the oil lines and hydraulic lines through the boom arm and the torque tube. This internal routing ensures better protection of the lines from external damage and improves the overall appearance of the loader.
600R Loader (side view)
600R Loader (angle view)
Rear view of 600R LoaderR-Series Loaders are even easier to attach and detach due to the automatic mast latch system. This feature provides efficiency to operations that require frequent loader parking. The automatic mast latch system is a mechanical lever that allows operators to remove or attach the loader with one trip out of the cab. The ease and convenience provided by the automatic mast latch system provides improvement to operation uptime.
Automatic mast latch lever
Visual lock/unlock indicator
Hydraulic shut-off valve on R-Series LoaderThe R-Series Loaders come equipped with a hydraulic shut-off valve to improve servicabiity. When conducting brief service to the loader, close the hydraulic shut-off valve to ensure the loader does not move while operating under the equipment. This feature promotes a safe way to conduct brief maintenance without having to use support stands or removing the loader completely.
600R Loader working with 6120M TractorThe MSL R-Series Loaders utilize a false rod cylinder to improve bucket performance. This bucket cylinder is designed with a smaller displacement of oil required on the head end of the cylinder, which allows the cylinder to function more quickly, decreasing operation cycle time. With the false rod cylinder design, loader applications can work more quickly and efficiently.
False rod cylinders on 600R Loader
600R Loader on a 6120M TractorThe R-Series Loaders provide several options to enhance operator experience and productivity in the field. Individual options can be ordered to fit an operation’s unique set of needs. Some of the available loader options include:
- Loader lights for enhanced visibility
- Hydraulic remote implement latch improves uptime
- Return-to-Position (RTP) Gen 2 with electronic self-leveling (ESL)
- Loader suspension system for a smoother ride
Loader lights for enhanced visibility
600R Loader with light-emitting diode (LED) lightsTo further enhance visibility, the 600R Loader has the option to include LED lights. With LED lights mounted onto each side of the loader boom, performing loader applications in variable operating conditions is made easier. Pairing the loader LED light option with an LED light package on the 6110M or 6120M Tractor will provide unmatched visibility to enhance operator experience during any task.
Hydraulic remote implement latch improves uptime
Two-button activation for hydraulic remote implement latchThe hydraulic remote implement latch allows implements to be changed quickly and efficiently. An operator can activate the device from the cab by simultaneously pressing the two buttons installed on the right-hand side of the operator’s station. Switching from one attachment to the next can now be accomplished quickly with limited movements of the loader and without leaving the operator’s seat.
Return-to-Position (RTP) Gen 2 with electronic self-leveling (ESL)
Electronic loader joystickThe second generation of industry-exclusive RTP Gen 2 with ESL provides a practical solution for operators with daily, repetitive, material handling needs. RTP allows the operator to set different position points for the loader with the flick of the wrist, activating the detent in electronic joysticks. With the second generation of RTP, operators can set application profiles rather than entering position points each time an application is in use. RTP Gen 2 with ESL removes repetition and fatigue from loader applications.
Loader suspension system for a smoother ride
600R Loader working with a 5100R TractorThe loader suspension system improves operator comfort and loader efficiency during loader operation. This system is easily activated by the operator from the cab. When activated, the loader suspension system absorbs the shock providing a smoother ride in the cab as well as reducing material loss from the bucket.
Specifications
Compare the specifications of up to 4 models
| Key Specs | 640r-loader Current Model |
|---|---|
| Maximum lift height (A) | 4151 mm 163 in. |
| Lift capacity at full height | Measured at pivot (U) 2515 kg 5545 lb |
| Boom breakout force | Measured at pivot (Y) 2814 kgf 6204 lbf |
| Bucket rollback force capacity | At ground-level line (ZZ) 4365 kgf 9623 lbf |
| Clearance at full height - bucket dumped (C) | 3141 mm 124 in. |
| Dump angle, degrees (E) | 59 degree (angle) |
| Rollback angle, degrees (G) | 52 degree (angle) |
| Tractor | |
| Model | 6110R/M, 6120R/M, 6130R/M |
| Front tire | 480/70R24 |
| Rear tire | 520/70R38 |
| Front axle configuration | MFWD w/ Limited Slip Differential |
| Wheelbase | 2580 mm 101 in. |
| Pump capacity | 114 L/min 30.1 gpm |
| Rated pressure | 200 bar 2900 psi |
| Loader | |
| Base weight | 2072.3 kg |
| Leveling configuration | Non-Self Leveling (NSL) |
| Bucket used | Heavy-duty grapple 2450 mm Heavy-duty grapple 96 in. |
| Bucket weight | 375 kg 826 lb |
| Lift capacity at full height | Measured at pivot (U) 2515 kg 5545 lb Measured at 800 mm ahead of pivot (V) 1757 kg 3874 lb |
| Lift capacity at 59 in. (1500 mm) | Measured at pivot (W) 2654 kg 5851 lb Measured at 800 mm ahead of pivot (X) 2080 kg 4586 lb |
| Boom breakout force | Measured at pivot (Y) 2814 kgf 6204 lbf Measured at 800 mm ahead of pivot (Z) 2114 kgf 4661 lbf |
| Bucket rollback force capacity | At maximum height (VV) 2509 kgf 5531 lbf At 59-in. (1500-mm) lift height (XX) 4301 kgf 9482 lbf At ground-level line (ZZ) 4365 kgf 9623 lbf |
| Dimensions | Maximum lift height (A) 4151 mm 163 in. At full height - bucket level(B) 3911 mm 154 in. At full height - bucket dumped (C) 3141 mm 124 in. |
| Overall length (I+F), ft (m) | 5.4 m 17.6 ft |
| Overall height in carry position (J) | |
| Digging depth (H) | 53 mm 2 in. |
| Reach | At maximum height (D) 993 mm 39 in. At ground level - bucket level (F) 2809 mm 111 in. |
| Bucket angle | Dump angle, degrees (E) 59 degree (angle) Rollback angle, degrees (G) 52 degree (angle) Dump angle, ground 144 degree (angle) |
| Cycle times | Loader raise, seconds 3.5 seconds Loader lower, seconds 2.63 seconds Bucket dump, seconds 2.65 seconds Bucket rollback, seconds 1.81 seconds |
