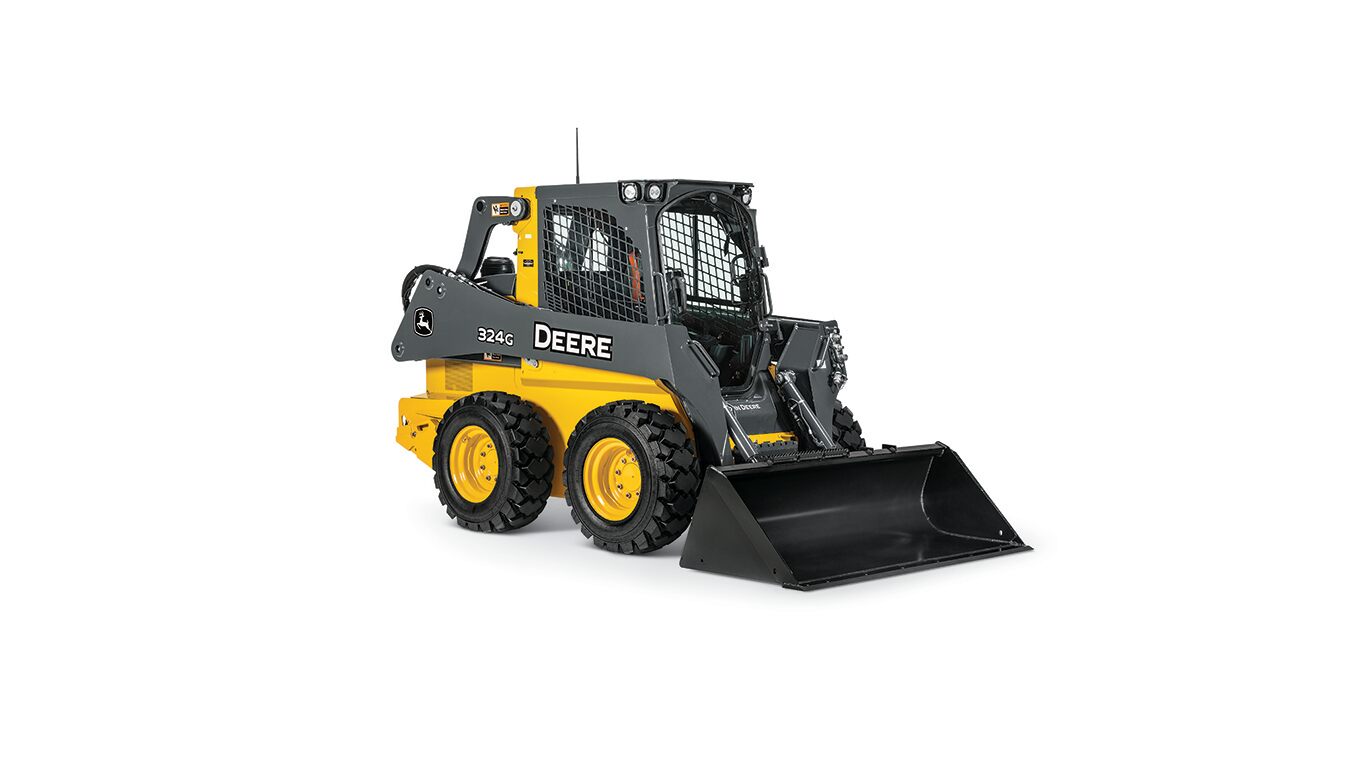

324g skid steer
Skid Steer
- Rated Operating Capacity: 1221 kg (2,690 lb.)
- Gross Horsepower: 55.0 kW (74 hp)
- Net Horsepower: 52.5 kW (70 net hp)
- Operating Weight: 3496 kg (7,700 lb.)
View Product Brochure
Features
- Features an EPA Final Tier 4 (FT4)/Stage IV engine that is simple, fully integrated, and fully supported to deliver industry-leading fuel efficiency and uptime.
- Easy-to-operate controls maximize an operator’s skills, for more everyday productivity.
- Spacious, comfortable cab is even more tightly sealed to keep out noise and dust. Available options include a four-season cab, Bluetooth® radio, and heated seats.
- Excellent all-around visibility has been further enhanced with customer-inspired side lighting and rearview camera options.
- Industry-leading bucket breakout forces and auxiliary flow
- The 324G’s height to hinge pin is 10 ft. 6 in. to easily load high-sidewall dump trucks, feed mixers, and hoppers.
- Easy Maintenance: Cab foot-well area can be washed out in a matter of minutes. Glove-friendly removable side windows make cleaning easier.
- Optional JDLink™ provides machine data and health alerts to help you decrease costly downtime.
Specifications
Compare the specifications of up to 4 models
| DESCRIPTION | 324g-skid-steer Current Model |
|---|---|
| Lift Geometry | Vertical |
| Fleet Management | Yes |
| Precision Guidance | No |
| Proximity Guidance | No |
| DRIVELINE | |
| Engine Manufacturer | Yanmar |
| Engine Model | 4TNV98CT |
| Emission Rating | Tier 4 |
| Aspiration | Turbo |
| Displacement, ltr (Inches³) | 3.3 (203) |
| Rated Engine Speed, rpm | 2500 |
| SAE Net Power, kW (hp) | 52.5 (70) |
| SAE Gross Power, kW (hp) | 54.8 (74) |
| Max. Gross Torque, Nm (lbf / ft) | 280 (207) |
| Drive Chain Rating [ANSI] | 80 - HD |
| Tire size - Standard | 12 x 16.5 - 12PR SKS |
| DIMENSIONS | |
| Length - No Bucket, mm (inches) | 2850 (112.3) |
| Length - With Bucket, mm (inches) | 3460 (136.3) |
| Width - No Bucket, mm (inches) | 1700 (67) |
| Overall Height, mm (inches) | 2060 (81.1) |
| Ground Clearance, mm (inches) | 240 (9.3) |
| Wheelbase, mm (inches) | 1120 (44.2) |
| Rear Departure Angle, ° | 28 |
| Height to Hinge Pin, mm (inches) | 3200 (126) |
| Dump Angle, ° | 41 |
| Dump Height - Maximum, mm (inches) | 2590 (102.1) |
| Reach - Max Dump Height, mm (inches) | 760 (29.9) |
| Rollback - Ground Level, ° | 34 |
| CAPACITIES | |
| Fuel Tank, ltr (gallons (US)) | 79 (21) |
| PERFORMANCE | |
| Rated Operating Capacity - Optional Counterweight, kg (lbs) | 1294 (2850) |
| Rated Operating Capacity, kg (lbs) | 1221 (2690) |
| Tipping Capacity (SAE), kg (lbs) | 2443 (5380) |
| Axle Torque - Maximum, Nm (lbf / ft) | 6771 (4994) |
| Speed - Maximum, kph (mph) | 11.1 (6.9) |
| Speed - Maximum Option, kph (mph) | 17.9 (11.1) |
| Breakout - Lift, kN (lbf) | 23.3 (5250) |
| Breakout - Bucket, kN (lbf) | 38.9 (8750) |
| Hydraulic Power, kW (hp) | 31.009 (41.5) |
| Hydraulic Power - Option, kW (hp) | 47.103 (63.1) |
| Pump Output, lt/min (gallons (US) / min) | 79 (21) |
| Pump Flow - Option, lt/min (gallons (US) / min) | 120 (32) |
| System Pressure, bar (PSI) | 237.87 (3450) |
| WEIGHTS | |
| Operating Weight, kg (lbs) | 3496 (7700) |
