GF 502 THA

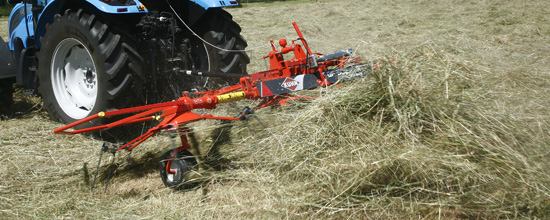

The Kuhn GF 502 THA trailed rotary tedder is best suited for small farms and is to be used with a low horsepower tractor. This model is economical and highly efficient while maintaining its reliability and longevity.

The GF 502 THA tedder has all the features required for high quality tedding without being hard to operate. This machine features small-diameter rotors that provide complete turnover and uniform distribution of the hay for unmatched drying speeds. Each rotor gearbox is sealed and lubed for life and is driven by Kuhn’s patented DigiDrive® coupling system that eliminates rotor driveline maintenance. The rotor height and tine angle are easily adjusted to optimize tedding in all crop conditions.













Specs

Working width DIN (feet)
16'5" / 5.0
Transport width (feet)
9'4" / 2.85
Number of rotors
4
Number of tine arms per rotor
6
Linkage
Drawbar
Tire type
Balloons 15 x 6.00 - 6
Drive
DIGIDRIVE Multiple finger couplings
Weight (lb)
950 / 431
