VK 135

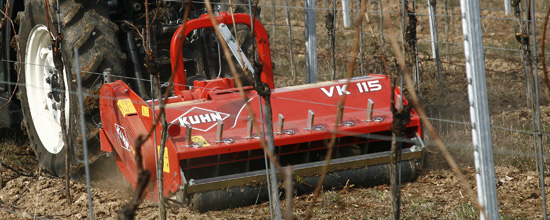

With a low profile, smooth edges and streamlined defectors the Kuhn VK shredders will finely shred grass, vine shoots and prunings. Ideal for grape-growing operations, the VK models are available in working widths from 3’1” to 5’1”.

Run at high speeds, the forged steel heavy hammer knives shred clippings and vine shoots finely and cut grass impeccably. Recutting is carried out using three counter-knives, one notched and two straight. If desired, these shredders can be offset up to 8" to the right (depending on model) for shredding under or close to trees and vines. The rear roller, with a scraper, flattens loose soil or ruts and provides additional clearance. Cutting height is adjusted by the rear roller or steel wheels.













Specs

Linkage
3 point - axial
Offset (inches)
7.5" / 20
Working width (feet)
4.5' / 1.35
Overall width (m)
1.44
Overall width (feet)
4.75' / 1.45
Transmission
13/8"- 6 splines
Outer diameter of rotor (inches)
15.5" / 398
Diameter of rotor tube (inches)
5" / 127
Thickness of rotor tube (inches)
5/16" / 8
Speed of rotor/s at 540 min-1 (min-1)
2218
Linear speed of rotor (m/s) at P.T.O 540 min -1
46
Number of hammer knives
14
Drive
Free wheel
Number / Type of belts
3/SPBX
Weight (kg)
365
Weight (lb)
728 / 329
Minimum power requirement for PTO (kW)
24
Minimum power requirement for PTO (hp)
32
Maximum authorised tractor power (kW)
37
Maximum Authorised Tractor Power (hp)
50
Rear Hood
Rigid
Height control
Roller or wheels
