HRB 353 DN

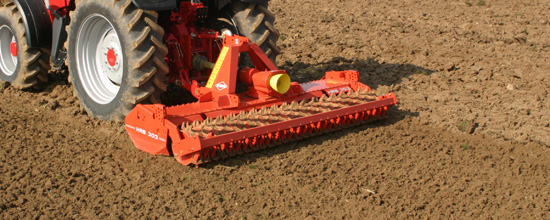

The Kuhn HRB 103 D Series power harrows are designed for farming operations that require intensive annual use in moderate to heavy soils. They are designed to complement the most commonly sold tractor sizes with horsepower ratings of 60 to 160 HP. The HRB 103 D power harrow series is available in working widths of 9'10", 11'6", and 13'1". These harrows perform very well for producers in crops where proper seedbed preparation is essential.

These power harrows feature a dependable gearbox, heavy-duty frame construction, all gear drive and forged tines. The vertical axis mixing action preserves soil moisture and creates an ideal environment for seed germination. The Duplex gearbox, with interchangeable gear sets, provides numerous speeds to best match field conditions and consistently prepare an ideal seedbed for virtually any specialty crop. This unit will save time and cost, and also reduce soil compaction, due to one pass cultivation.













Specs

Working width (m)
3.44
Working width (feet)
11'6"
Gearbox
Duplex
Minimum power requirement for PTO (kW)
59
Minimum power requirement for PTO (hp)
80
PTO speed (rpm)
1000/750/540
Maximum Authorised Tractor Power (hp)
160
Maximum authorised tractor power (kW)
118
Transmission
With cam type cut-out clutch
Weight with Maxicrumbler roller (kg)
1296
Weight with Maxicrumbler roller (lb)
2844
Weight with Packer PK2 roller (kg)
1525
Weight with Packer PK2 roller (lb)
3362
Weight with Maxipacker roller (kg)
1575
Weight with Maxipacker roller (lb)
3472
Weight with cage roller (kg)
1300
Weight with cage roller (lb)
2866
