EL 122250

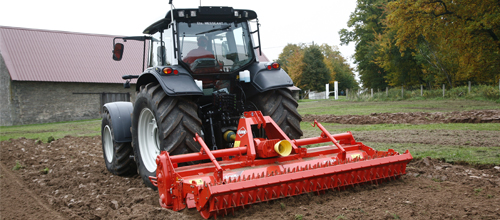

The Kuhn EL 122 power tillers fit in the middle range segment of Kuhn rotary tools with a horizontal axis. They are intended for tractors rated at up to 125 horsepower and are used for mixed farming and open field market gardening. These EL power tillers perform exceptionally well for producers with crop applications where proper seedbed preparation is essential.

As with all Kuhn implements intended for soil preparation, the EL 122 power tillers feature a particularly sturdy design. The EL 122 power tillers feature dependable gearboxes with reinforced drivelines, heavy-duty frame construction, larger diameter rotors, new hood profile and double articulated rear hood for improved tilling action. Quick change rotors are easily removed when exchanging rotors to match different soil conditions. This also simplifies tine replacement. The duplex gearbox allows for multiple rotor speeds to best match field conditions, providing the proper seedbed needed for your crop. Due to the perfectly regulated soil flow, the machine operates smoothly, providing reliability and long life.













Specs

Working width (m)
2.5
Working width (feet)
8'2"
Speed of rotor/s at 540 min-1 (min-1)
195/231/275/165
Speed of rotor/s at 1000 min-1 (min-1)
258/361/218/183/305
Maximum Authorised Tractor Power (hp)
125
Maximum authorised tractor power (kW)
92
Lateral drive mechanism
Gearwheels
Working depth (mini) (inches)
3"/8
Working depth (max.) (inches)
9"/23
Weight with Maxicrumbler roller (lb)
2381/1080
Weight with packer roller (lb)
2778/1260
Weight with Maxipacker roller (lb)
2910/1320
Weight with cage roller (lb)
2469/1120
Weight with skids/wheels (lb)
2105/955
