EL 62130

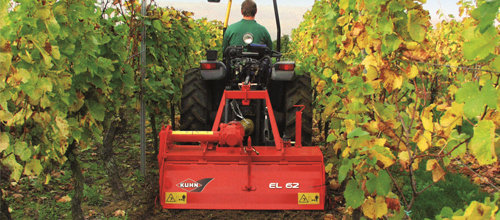

The Kuhn EL 62 power tiller has been designed with versatility and durability for vineyard, market garden, horticulture and nursery operators. Its compact design allows the operator to till in vineyards and orchards, without damaging plants or trees.

Unlike chain-type gearboxes, the rotor on this machine is driven by heat-treated gears in a permanent oil bath, making it nearly maintenance free and very reliable. ā€œCā€ blades, equipped on the rotor, aggressively chop soil and plants with minimum horsepower. The rigid box construction acts as counteraction to shocks and vibrations. Three adaptable yokes allow the tiller to be offset to the right to cover wheel tracks or maneuver around trees and other obstacles. The rear hood is adjustable to match soil conditions and acts in soil leveling for smooth seedbeds.













Specs

Working width (m)
1.3
Working width (feet)
50"
Diameter of roller (inches)
18" / 450
Minimum power requirement for PTO (kW)
19
Minimum power requirement for PTO (hp)
25
Speed of rotor/s at 540 min-1 (min-1)
224
Maximum Authorised Tractor Power (hp)
65
Maximum authorised tractor power (kW)
48
Lateral drive mechanism
Gearwheels
Type of tools
C-blades or L-blades
Working depth (mini) (inches)
2" / 5
Working depth (max.) (inches)
7" / 18
Control of working depth
Choice of skids or wheels
Weight with skids/wheels (lb)
646 / 293
