SW 1114

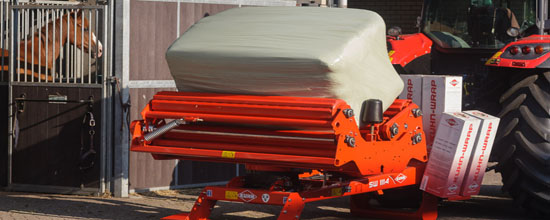

The KUHN SW 1114 is a 3-point mounted square bale wrapper that can wrap medium square and round bales. This static wrapper is ideal for ‘wrap-and-stack’ operations. Bales can be collected in the field and wrapped at the storage place, minimizing the risk of film damage. The wrapper can be operated from a loader while using a power pack or second tractor for the oil- and power supply due to standard RF remote control. The large main frame, with wide support legs, provides the ideal basis for the low mounted square bale turntable which ensures a gentle discharge of the bale. For a firm cut and hold of the film, even in wet conditions, the wrapper is provided with a hydraulic high grip film cutter. The SW 1114 can be operated via the 2-handle cable control or computer control box













Specs

Weight approx. (kg)
1020
Bale dimension square (Width x Heigth x Length ) (m)
0.80 x (0.60-0.90) x 1.80
Bale dimension round (Width x diameter) (m)
(1.20 x 1.50) x (1.00 x 1.50)
Max bale weight (kg)
1200
Oil consumption (l/min)
26
Remote control
Standard
1 x pre-stretcher 750mm film
Standard
Control type
Manual 2 lever/cable controlled or computer controlled
Loading system
External
