AB18
Bale Spear
- Compatible with John Deere H480 Series Loader and is Global Category 2 compatible.
- Cross-bolt design greatly improves quality of the bale spears.
- Designed for easy tine replacement.
View Product Brochure
Features
AB14K Bale Spear
AB15K Bale SpearThe ABK Series Bale Spears are equipped with the global Category 2 attachment carrier system. This system creates ease and accuracy for the operator.
Three-bale capacity

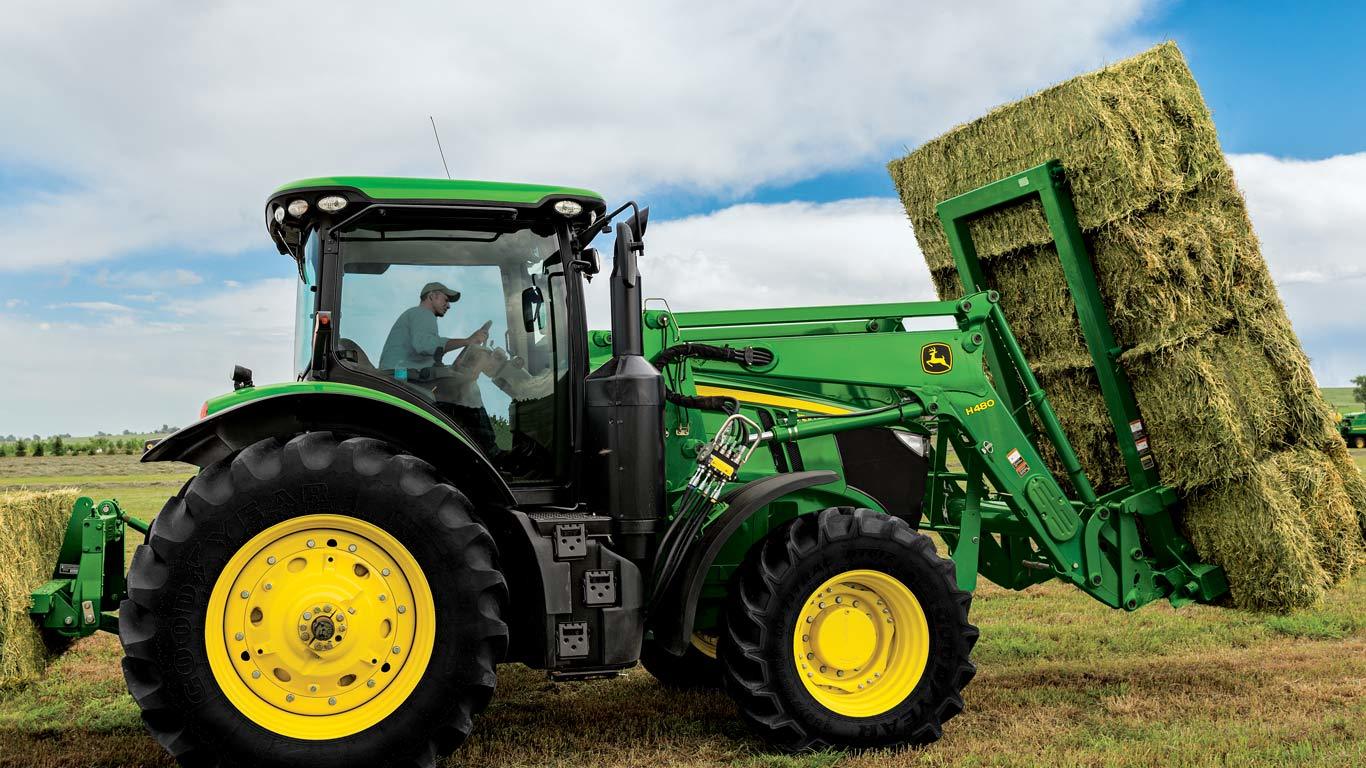

The AB18K can move three 1.2-m by 1.2-m (4-ft by 4-ft) bales, four 0.9-m by 1.2-m (3-ft by 4-ft) bales, or four 0.9-m by 0.9-m (3-ft by 3-ft) bales with ease. A strong frame built from large square tubing gives the AB18K the strength to do so.
AB14K Bale Spear shownThe ABK Series Bale Spear is designed for easy replacement of tines. The cross-bolt design greatly improves quality of the bale spears.
Specifications
| Dimensions | AB18 Current Model |
|---|---|
| Overall height | 294.6 cm 116 in. |
| Overall width | 182.4 cm 71.8 in. |
| Overall length | 154.9 cm 61 in. |
| Attachment carrier | |
| Weight | |
| Operational | 422.3 kg 931 lb |
| Shipping | 481.7 kg 1062 lb |
| Spears | |
| Primary | Location BottomQuantity FourSize 5.6x134.6 cm 2.2x53 in. |
| Stabilizing | Location Middle and topQuantity FourSize 3.2x50 cm 1.25x19.7 in. |
| Bale | |
| Round | |
| Square | Quantity 3 (4x4); 4 (3x4); 4 (3x3)Size Large Square (4 x 4)Weight 2,721.6 kg 6,000 lb Yes |
| Set-up time | |
| Warranty | |
