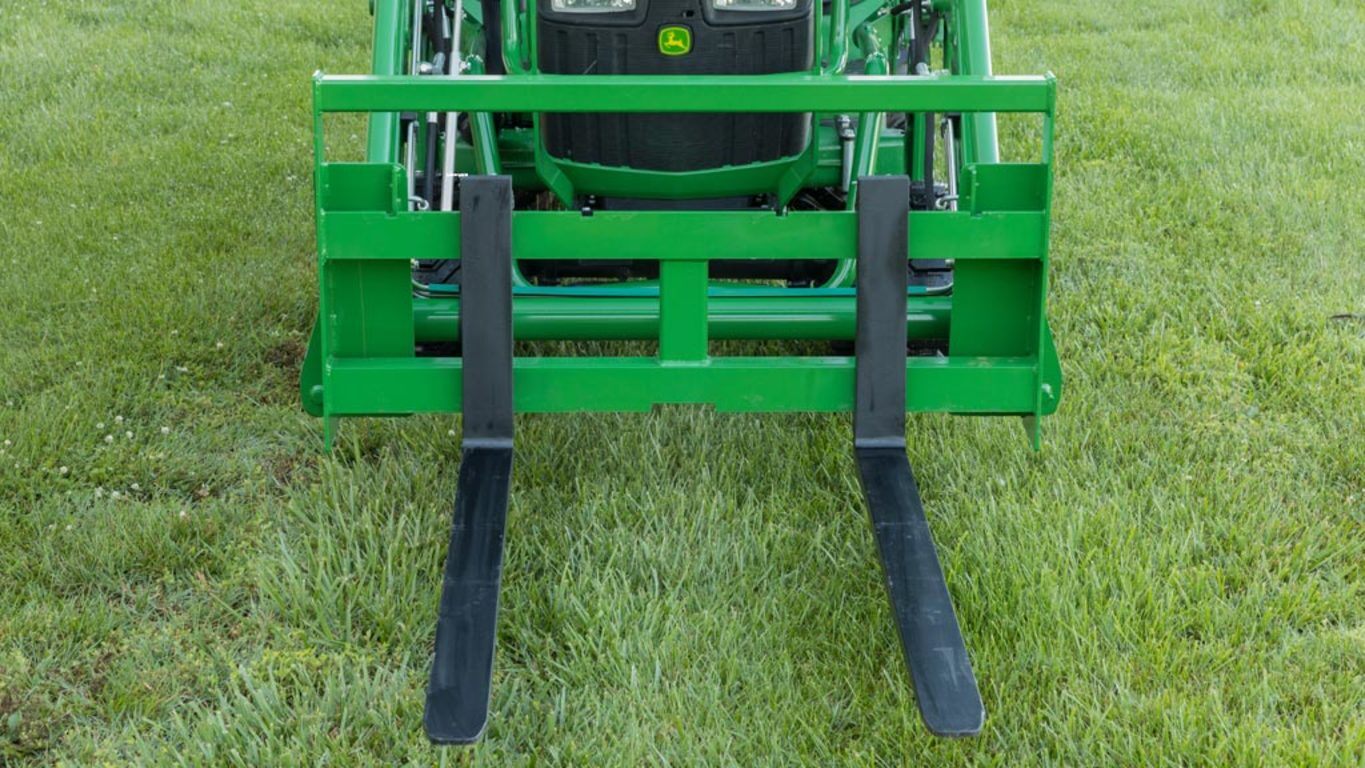

AP10

Pallet Fork

  • High tensile, heavy-gauge steel frame
  • Tines float while picking up and removing pallets on uneven terrain
  • Tines can be made rigid at any position using set screws
  • See brochure for loader series compatibility
Starting At:


View Product Brochure



Features



Tine lengthsTine lengths

Choose between two tine lengths – 91.4 cm (36 in.) or 106.7 cm (42 in.) – to best match the type of work the producer wants to complete with the attachment.

Tine positionsTine positions

Easily move tine forks to three desired locations for picking up a variety of pallet sizes.

Locking the attachment in placeLocking the attachment in place

Hook up the pallet fork by lining up the loader’s connecting point to the attachment frame, picking up the attachment, and locking it in place.

Specifications


Dimensions AP10
Current Model
Overall height62.2 cm
24.5 in.
Overall width125.1 cm
49.25 in.
Overall lengthLength with 91.4-cm (36-in.) tines - 114.3 cm
45 in.
Length with 106.7-cm (42-in.) tines - 129.5 cm
51 in.
Attachment carrier
Weight
OperationalWith 36-inch tines: 77.1 kg
170 lb
With 42-inch tines: 89.8 kg
198 lb
ShippingWith 36-inch tines: 97.1 kg
214 lb
With 42-inch tines: 109.8 kg
242 lb
Fork tines
TypeFixed
CapacityCapacity with 91.4-cm (36-in.) tines - 567 kg
1250 lb
Capacity with 106.7-cm (42-in.) tines - 567 kg
SectionSection with 91.4-cm (36-in.) tines - 25.4 x 76.6 mm
1.0 x 3.0 in.
Section with 106.7-cm (42-in.) tines - 30 x 80 mm
1.18 x 3.13 in.
Length91.4 and 106.7 cm
36 and 42 in.
Set-up time
Warranty
Key Specs
Current series style
Fork tines
