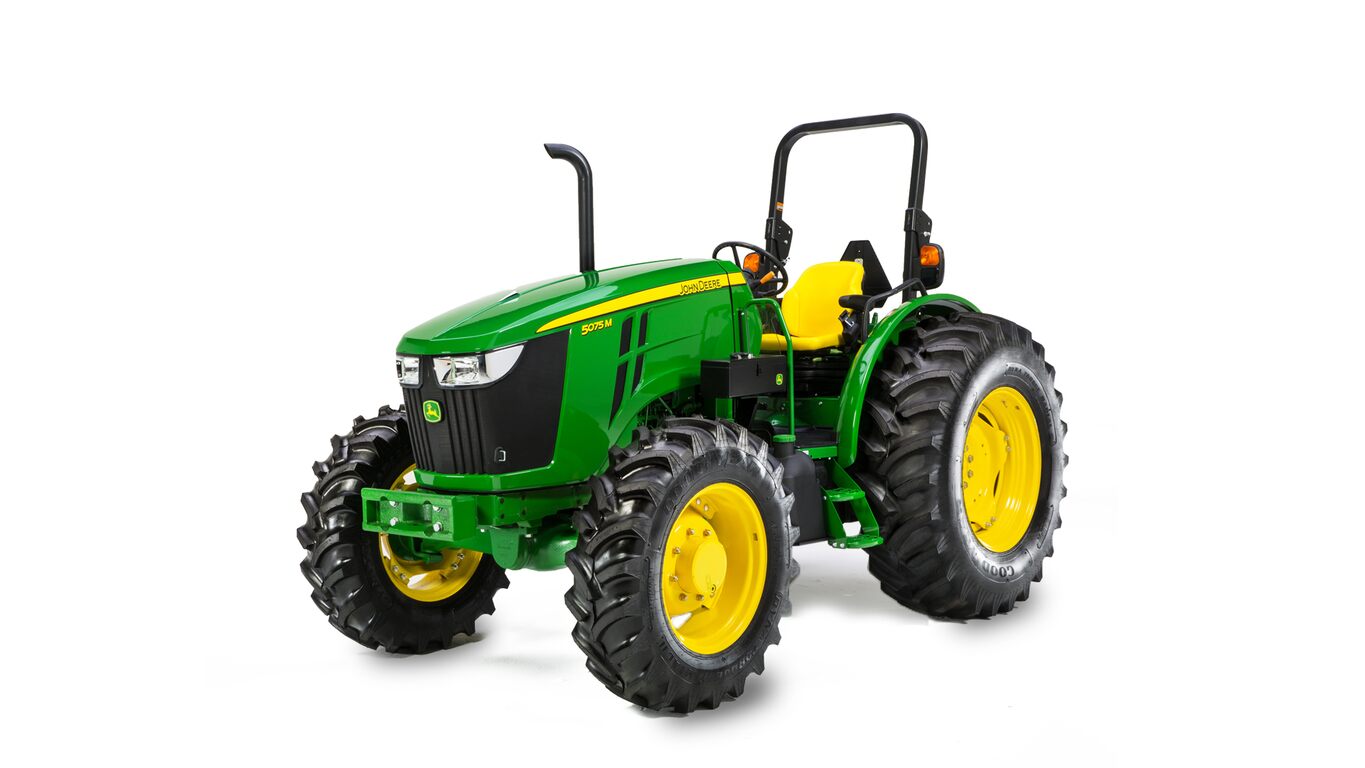

5075m utility tractor

Utility Tractor

  • John Deere PowerTech Diesel Engine
  • Final tier 4 compliant engine technology
  • Choose from 12F/4R, 16F/16R, and 32F/16R transmission options
  • Choose climate-controlled cab, fixed open station



View Product Brochure



Features



The engine powering the 5075M is EPA certified Tier Level 4. This is achieved through a combination of a diesel oxidation catalyst (DOC) and a diesel particulate filter (DPF).  John Deere uses the most efficient solution for the tractor package to meet emissions requirements at each horsepower level. The system always defaults to passive regeneration mode, and will only go into an active regeneration cycle when necessary without impacting engine performance. This active cycle takes place on average about every 40 hours of normal tractor operation. The regeneration process cleans out the DPF element.

Model

Cylinders

Engine displacement

Engine hp

PTO hp

Rated rpm

Aspiration

5075M

3

2.9 L (0.77 gal.)

75

57.6

2400

Turbocharged

As per 97/68/EC ISO at rated speed.

Other key engine features and related benefits:

  • Heavy-duty cylinder block – strength and rigidity
  • Balanced crankshaft – reduces engine vibration
  • Optimized cylinder heads – improved airflow, better fuel economy
  • Low friction, high-ring pistons – cast-aluminum design
  • Plasma-coated top rings – reduced drag on cylinder wall
  • Wet-type cylinder liners – dissipate heat to prevent cylinder wear
  • Full-pressure lubrication system – eliminates excessive heat
  • Electric fuel shutoff – does not allow bypass starting
Getting the power to the ground refers to torque. Torque is a force that produces or tends to produce rotation or a twisting force. Torque represents the useable power that can be achieved. The more torque, the more lugging ability is available. More torque also equates to more load carrying capacity.

Torque

When the tractor is under load, power bulge and torque rise work together to get through the tough spots. Horsepower and torque are mathematically related.


Power through tough spotsPower through tough spots

Benefits of torque reserve:

  • Improved fuel efficiency
  • Reduced noise levels
  • Less downshifting
  • Increased productivity
  • Efficient throttle response

For operators requiring more field speeds to achieve the most precise operating ranges, as well as for quickly moving from task to task with transport speeds of up to 40.23 km/h (25 mph), the 32F/16R PowrReverser Plus transmission is the ideal choice. This transmission provides 32 forward speeds and 16 reverse (32F/16R) speeds for the ultimate in speed selection. The transmission provides convenient push-button controls like the electrohydraulic high/low selector to gear up or down within a range without clutching.



For horticulture producers needing more precise ground speeds, a 32F/16R PowrReverser with creeper is available. This enables operators to move at a slower, consistent speed within a range.

Gear-shift lever with incorporated declutch buttonGear-shift lever with incorporated declutch button

The rabbit/turtle feature benefits operators who frequently transport their tractors from field to field or find themselves in bog-down situations during rear power take-off (PTO) work. Operators can push the rabbit button (high) without having to depress the clutch to get a 20 percent increase in speed. They can also push the turtle button (low) to get a 20 percent decrease in speed, similar to downshifting or engine braking without having to grab another gear. The 32F/16R transmission includes the infinitely variable shuttle control feature. The PowrReverser has a built-in engagement override valve for additional safety. This valve requires the clutch pedal to be depressed one time after each engine start before the transmission will begin to operate normally, giving the operator another opportunity to put all focus on the tractor.



A neutral start switch requires the directional lever be in the neutral position to start the engine.

32F/16R transmission includes:
  • Wet clutch
  • Platform-mounted shift levers (four gears, four ranges, with hi/lo selector)
  • Left-hand reverser (F to R without clutching)
  • Constant-mesh, helical gears
  • Pressure-lubricated top shaft
  • Positive park paw
  • Neutral start switch
  • Speeds ranging from 1.75 km/h (1.09 mph) (A-1) to 36 km/h (22.4 mph) (D-4) with 480/70R28 tires on the mechanical front-wheel drive (MFWD) tractor
    • For other ground speeds, please leverage the correction factors for other tires in the operator’s manual.

All tractors have economy power take-off (E-PTO), a fuel-saving feature that allows drivers to operate rear implements at 540 PTO rpm but at lower engine rpm. The result is lower engine vibration, reduced noise, less wear and tear on the engine, reduced fuel consumption and increased operator comfort.

See PTO functional area for more information on E-PTO.

The exclusive mid-frame design on the 5M Series offers additional strength and durability but also reduces noise and vibrations. Because the mid frames are made from hardened cast steel, they will stand up to the toughest conditions and enhance loader operation stability and performance.

The mid frames also act as protection for different pieces of essential equipment. The hydraulic pump, located between the mid-frames, is attached to the transmission for short hydraulic lines and simplified fluid flows. An optional mid-mount fuel tank allows the tractor to carry an extra 30.3 L (8 gal.) of diesel. This is especially useful for long days in the field or when a trip to fill up may not be convenient.

The mid-frames are compatible with current loader mounting frames. This benefits customers interested in upgrading a tractor and keeping a H260 Loader.

A heavy tractor means more down force to keep implements in the ground. More weight also leads to improved traction and performance in the field. Because the 5M is made with heavy and durable cast steel, it weighs enough to power through those tough jobs.

The compactness of the 5M Series in regards to wheelbase, weight, and total height tractor makes this tractor suited for a variety of different applications and is the perfect choice for all types of farms.

A heavy tractor also means better stability when performing loader work. Transport full bucket loads faster and lift bales higher with a stronger and more stable base.

Tractor weight packageTractor weight package

Model

5075M*

5090M

5100M

5115M

Two-wheel drive (2WD) open operator station (OOS)
(lb; kg)
7400; 33577300; 33107500; 3400

N/A

2WD cab (lb; kg)8300; 37658200; 37208400; 3810

N/A

Mechanical front-wheel drive (MFWD) OOS (lb; kg)7900; 35837800; 35408000; 36308000; 3630
MFWD cab (lb; kg)8800; 39928700; 39508900; 40408900; 4040
With H260 mechanical self-leveling (MSL) OOS~8307 lb~8307 lb~8307 lb ~8307 lb
With H260 MSL cab~9805 lb~9805 lb~9805 lb ~9805 lb

*FT4 5075M has diesel oxidation catalyst/diesel particulate filter (DOC/DPF)

The Category 2 3-point hitch on the 5M Series Tractors adapts to a wide variety of implements. Telescoping draft links with interchangeable hitch balls are factory-installed, enabling easier implement attachment. The 3-point hitch has plenty of lift capacity to handle heavy ground-engaging implements such as planters, sprayers, and field cultivators. The external cylinders allow a hitch lift capacity of 2174.1 kg (4793 lb) at 61 cm (24 in.) behind the hitch-lift balls.

5075M 3-point hitch5075M 3-point hitch
#

The 5075M comes standard with 56-m (183.7-ft) hitch lift cylinders, but the customer has the option of selecting the larger 63-mm (2.5-in.) lift cylinders that offer 2692.1 kg (5935 lb) of lift capacity at 61 cm (24 in.) behind the hitch lift balls from the factory (code 8458) or by ordering the field-installed heavy-duty hitch kit.

Heavy-duty 3-point hitchHeavy-duty 3-point hitch
#

The sway bars can be easily adjusted to adapt to a wide variety of implements and the right lift link adjusts without tools for added convenience when leveling implements. Operators do not need to carry a tool to adjust the rear hitch.

Adjustable sway barsAdjustable sway bars

Specifications


Compare the specifications of up to 4 models

Key Specs 5075m-utility-tractor
Current Model
Engine descriptionJohn Deere PowerTech 3029
Engine displacement3 cylinder: 2.9 L
179 cu in.
Rated engine powerAt 2200 rpm per ISO 97/68/EC: 55.1 kW
73.8 hp
Rated PTO power (hp SAE)At 2100 rpm per SAE: 43 kW
57.7 PTO hp
Maximum PTO power
Transmission typeStandard: 16F/16R PowrReverser
Optional: 12F/4R SyncShuttle Plus
32F/16R PowrReverser Plus
Hydraulic pump rated outputStandard: 94 L/min
24.7 gpm
Rear hitch category (SAE designation)Category 2; convertible to 1
Base machine weight
Maximum engine power
Engine specifications
DescriptionJohn Deere PowerTech 3029
Engine type
Engine familyEJDXL03.0208
Rated speed
AspirationTurbocharged and Air-to-Air Aftercooled
Cylinders linersWet sleeved
Emission levelFinal Tier 4
After treatment type
Displacement3 cylinder: 2.9 L
179 cu in.
Engine performance
Rated powerAt 2200 rpm per ISO 97/68/EC: 55.1 kW
73.8 hp
Rated PTO power (hp SAE)At 2100 rpm per SAE: 43 kW
57.7 PTO hp
Maximum PTO power
Power boost
Engine peak torque
PTO torque riseAt 1400 rpm: 27.2 percent
Intelligent Power Management (available in transport and/or mobile PTO applications)
Maximum engine power
Transmission
TypeStandard: 16F/16R PowrReverser
Optional: 12F/4R SyncShuttle Plus
32F/16R PowrReverser Plus
ReverserLeft hand, mechanical
Clutch; wet/dryWet
Creeper32F/16R PowrReverser
Hydraulic system
TypeOpen Center
Pump rated outputStandard: 94 L/min
24.7 gpm
Available flow at a single rear SCV70 L/min
18.4 gpm
Available flow at front SCVs
Number of rear selective control valves (SCVs)2/up to 3 total
Number of mid selective control valves (SCVs)2/up to 3 total
Number of front selective control valves (SCVs)
Joystick SCV controlStandard
SCV control
Rear hitch
Hitch draft control load sense typeMechanical or electrohydraulic
Remote control valves availableStandard: 2
Optional: 3
Hitch category (SAE designation)Category 2; convertible to 1
Maximum lift capacity behind lift pointsStandard: 2578 kg
5685 lb
Optional: 2993 kg
6600 lb
Sensing typeLower link
Rear axle differential lockElectrohydraulic
Lift capacity at standard frame
Drawbar
Drawbar category
Maximum vertical load
Rear power take-off (PTO)
TypeStandard: Independent 540/540 Economy
Optional: 540/540E/1000
Engine rpm (at rated PTO speeds)540 at 2100 rpm
540E at 1645 rpm
PTO actuationElectrohydraulic
Ground speed PTO option availability
Multispeed PTO option availability
Front hitch
CategoryCat 2
Electric power
Standard lift capacity1931 kg
4257 lb
Front power take-off (PTO)
PTO speed
Rear axle
Type
Final drive typeInboard planetary
Differential controlsElectrohydraulic
Axle typeFlanged
Brakes, type and controlHydraulic wet disc
Rear differential lock
Load rating
Front axle
Type
Front axle differential lock
Load rating
Tires
Front2WD: 11LL-15 8PR F2 Firestone
MFWD: 320/85R24 (12.4R24) R1W Radial Firestone
Rear2WD: 460/85R30 (18.4R30) R1W Firestone
MFWD: 460/85R30 (18.4R30) R1W Firestone
Wheel tread range2WD: front: 1520-2020 mm
59.8-79.5 in.
rear: 1349-2055 mm
53.1-80.9 in.
MFWD: front: 1299-1997 mm
51.1-78.6 in.
Turning radius with brakes2WD: 3.67 m
12.04 ft
MFWD: 3.85 m
12.6 ft
Turning radius without brakes2WD: 3.85 m
12.6 ft
MFWD: 4.0 m
13.1 ft
Steering
Electrical system
Alternator size
Battery options
Total cold cranking amps
Type of bulb in beacon (Halogen, Zenon, LED)
Type of bulb in headlight (Halogen, Zenon, LED)
Working lights
dB(A) rating for backup alarm
Operator station
Rollover protective structure, OOSRigid - foldable - telescopic
Foldable, 2-post
Platform - flat/straddle
Flat
Gearshift location - console/floor
Floor
SeatStandard: Mech suspension
Optional: air ride
Cab suspension
Instructional seatOptional
Display
Radioopt
Inner cab volume
dB(A) rating78 dBA
Cab glass area
Front visibility
Safety glass rating
Dimensions
Wheelbase2WD and MFWD: 2350 mm
92.5 in.
Overall length
Drawbar clearance
Front axle center
Approximate shipping weight, Open;Cab2WD: Open: 3700 kg
8140 lb
Cab: 3900 kg
8580 lb
MFWD: Open: 3975 kg
8765 lb
Cab: 4175 kg
9185 lb
Overall height
Weight
Base machine weight

Maximum ballast level
Maximum permissible weight
Capacities
Crankcase oil volume
Fuel tankStandard: Open: 111.9 L
29.6 U.S. gal.
Cab: 139.1 L
36.7 U.S. gal.
Optional: open: 141.2 L
37.3 U.S. gal.
Cab: 170.3 L
45 U.S. gal.
Diesel exhaust fluid (DEF) tank12.1 L
3.2 U.S. gal.
Cooling system
Transmission-hydraulic system
Serviceability
Interval for engine oil change
Interval for hydraulic/transmission oil change
Interval for engine coolant change
Loaders
Loader
Lift capacity at full height
Maximum lift height
Precision AG
Guidance
Telematic
Remote diagnostics
Miscellaneous
Country of manufactureAugusta, GA
Side slope rating
Uphill/downhill slope rating
Tracks
Drive type
