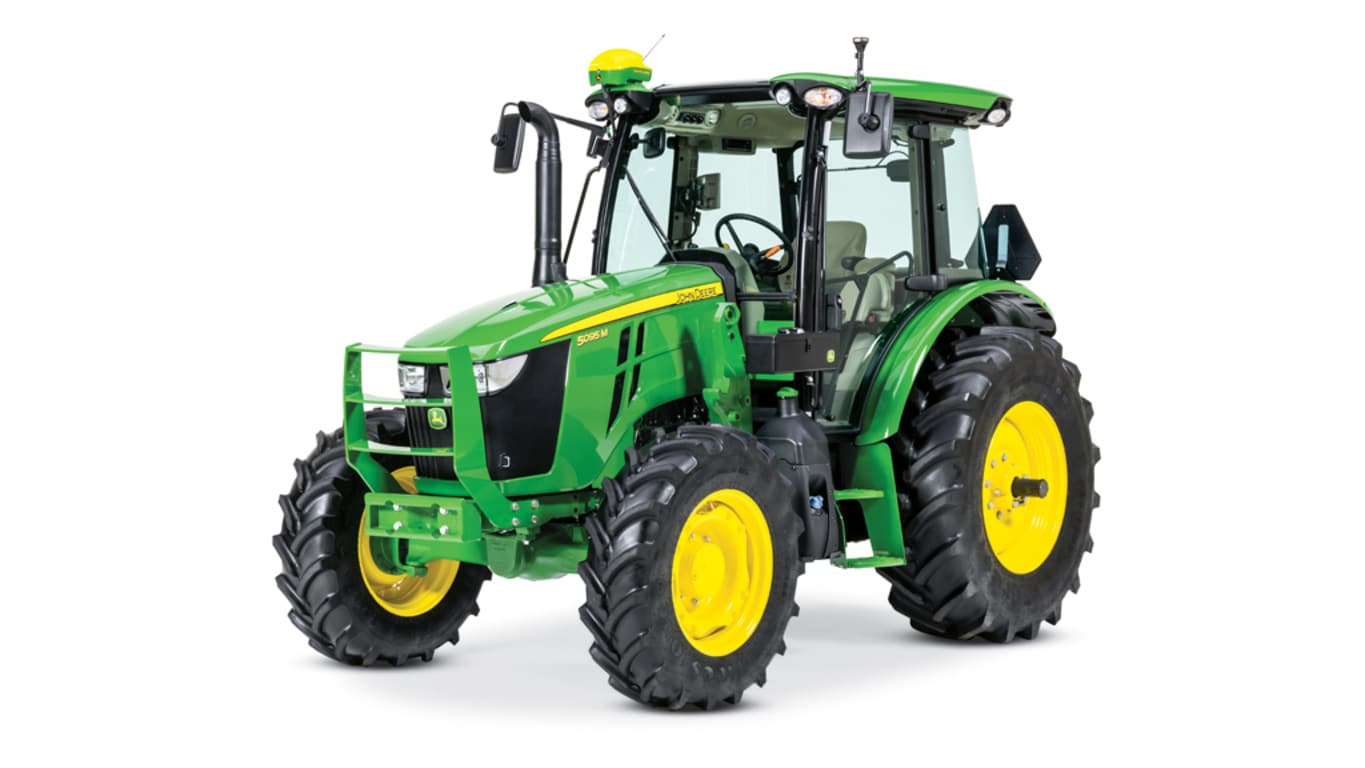

5095m utility tractor
Utility Tractor
- PowrReverser™, PowrQuad™ PLUS or Powr8™ transmission options
- Choose climate-controlled cab or open station
- Hitch lift capacity starting at 5,150 lb (2,336 kg) and optional up to 7,860 lb (3,565 kg)
View Product Brochure
Features
Specifications
Compare the specifications of up to 4 models
| Key Specs | 5095m-utility-tractor Current Model |
|---|---|
| Engine description | John Deere PowerTech™ 4045 EWL |
| Engine displacement | 4 cylinder: 4.5 L 276 cu in. |
| Rated engine power | At 2200 rpm: 70.0 kW 95 hp |
| Maximum engine power | 73.0 kW 97.8 hp |
| Rated PTO power (hp SAE) | At 2100 rpm: 58.8 kW 80 hp |
| Maximum PTO power | |
| Transmission type | Standard: PowrReverser™ 16F/16R Optional: PowrReverser™ Hi-Lo 32F/16R PowrQuad™ PLUS 16F/16R Powr8™ 32F/16R Powr8™ 32F/16R with creeper |
| Hydraulic pump rated output | PowrReverser™: 94 L/min 24.7 gpm PowrQuad™ PLUS/Powr8™: 97 L/min 25.6 gpm |
| Rear hitch category (SAE designation) | Category 2; convertible to 1 |
| Base machine weight | PowrReverser™: 3764 kg (8,298 lb) PowrQuad™ PLUS/Powr8™: 3964 kg (8,740 lb) |
| Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628) | |
| Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628) | |
| Engine specifications | |
| Description | John Deere PowerTech™ 4045 EWL |
| Engine type | 4045HLV82 |
| Engine family | NJDXL04.5317 |
| Rated speed | 2200 rpm |
| Aspiration | Turbocharged/air-to-air aftercooled |
| Cylinders liners | Wet sleeved |
| Emission level | Final Tier 4 |
| After treatment type | DOC/SCR |
| Displacement | 4 cylinder: 4.5 L 276 cu in. |
| Engine performance | |
| Rated power | At 2200 rpm: 70.0 kW 95 hp |
| Rated PTO power (hp SAE) | At 2100 rpm: 58.8 kW 80 hp |
| Maximum PTO power | |
| Intelligent Power Management (IPM) | |
| Power boost | At 1900 rpm: 4 percent |
| Maximum engine power | 73.0 kW 97.8 hp |
| Engine peak torque | At 1600 rpm: 396 Nm 292 lb-ft |
| Drawbar power | |
| PTO torque rise | At 1600 rpm: 30 percent |
| Fuel injection system and control | |
| Air cleaner type | |
| Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628) | |
| Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628) | |
| Transmission | |
| Type | Standard: PowrReverser™ 16F/16R Optional: PowrReverser™ Hi-Lo 32F/16R PowrQuad™ PLUS 16F/16R Powr8™ 32F/16R Powr8™ 32F/16R with creeper |
| Reverser | Left hand, electrohydraulic |
| Clutch; wet/dry | Wet |
| Creeper | Powr8™ 32F/16R with creeper |
| Hydraulic system | |
| Type | Open center |
| Pump rated output | PowrReverser™: 94 L/min 24.7 gpm PowrQuad™ PLUS/Powr8™: 97 L/min 19.3 gpm |
| Available flow at a single rear SCV | 70 L/min 18.4 gpm |
| Available flow at front SCVs | |
| Number of rear selective control valves (SCVs) | Standard: Two Optional: Three |
| Number of mid selective control valves (SCVs) | Standard: Two Optional: Up to Three |
| Number of front selective control valves (SCVs) | |
| Joystick SCV control | Mechanical |
| Auxiliary hydraulic features | |
| SCV control | |
| Rear hitch | |
| Hitch draft control load sense type | Mechanical or Electrohydraulic |
| Remote control valves available | Standard: Two Optional: Three |
| Hitch category (SAE designation) | Category 2; convertible to 1 |
| Maximum lift capacity behind lift points | Standard for PowrReverser™: 2336 kg 5150 lb Optional for PowrReverser™: 2699 kg 5950 lb Standard for PowrQuad™ PLUS/Powr8™: 3161 kg 6970 lb Optional for PowrQuad™ PLUS/Powr8™: 3565 kg 7860 lb |
| Lift capacity at standard frame | |
| Sensing type | Lower link |
| Rear axle differential lock | Electrohydraulic |
| Drawbar | |
| Drawbar category | Category 2 |
| Maximum vertical load | Road/field use (250-mm extended): 1450 kg 3197 lb Field use (350-mm extended): 1200 kg 2646 lb Field use (400-mm extended): 1200 kg 2646 lb |
| Rear power take-off (PTO) | |
| Type | Independent, 34.9 mm (1.375 in) Standard: 540/540 Economy (6 spline) Optional: 540/540E (6 spline) and 1000 rpm (21 spline) reversible shaft |
| Engine rpm (at rated PTO speeds) | 540 at 2100 rpm 540E at 1645 rpm 1000 at 2100 rpm |
| Economy PTO speeds | |
| Reverse PTO speeds | |
| Multispeed PTO option availability | |
| Ground speed PTO option availability | |
| PTO actuation | Electrohydraulic |
| Front hitch | |
| Category | Category 2 |
| Electric power | |
| Standard lift capacity | 1931 kg 4257 lb |
| Front power take-off (PTO) | 1000 rpm (21 spline) 34.9 mm (1.375 in.) |
| PTO speed | 1000 at 2200 rpm |
| Rear axle | |
| Type | Standard: Flange Optional: Rack-and-pinion (Bar) |
| Final drive type | Inboard planetary |
| Differential controls | Electrohydraulic |
| Axle type | |
| Brakes, type and control | Hydraulic wet disc |
| Rear differential lock | |
| Load rating | |
| Front axle | |
| Type | Standard: Mechanical Front Wheel Drive (MFWD) Optional: Two-Wheel Drive (2WD) |
| Front axle differential lock | |
| Load rating | |
| Tires | |
| Rear | 2WD: 18.4R30 (460/85R30) R1W Radial MFWD: 18.4R30 (460/85R30) R1W Radial |
| Wheel tread range | 2WD: front: 1520-2020 mm 59.8-79.5 in. MFWD: front: 1299-1997 mm 51.1-78.6 in. rear: 1350-2286 mm 53.1-90 in. |
| Turning radius with brakes | 2WD: 3.67 m 12.04 ft MFWD: 3.85 m 12.6 ft |
| Turning radius without brakes | 2WD: 3.85 m 12.6 ft MFWD: 4.0 m 13.1 ft |
| Central Tire Inflation System (CTIS) | |
| Front | |
| Tracks | |
| Tread spacing | |
| Drive type | |
| Track width | |
| Mid-rollers | |
| Steering | |
| Type | |
| Brakes | |
| Primary brake (foot brake) | |
| Secondary brake | |
| Park lock | |
| MFWD braking | |
| Front axle brakes | |
| Auxiliary brakes | |
| Hydraulic trailer brakes | |
| Pneumatic trailer brakes | |
| Electrical system | |
| Alternator size | OOS: 90 amp Cab: 120 amp ISOBUS/GreenStar™ Ready: 200 amp |
| Battery options | 12 V |
| Working lights | Standard: Halogen Optional: LED |
| Type of bulb in headlight (Halogen, Zenon, LED) | Standard: Halogen Optional: LED |
| Type of bulb in beacon (Halogen, Zenon, LED) | Optional: LED |
| dB(A) rating for backup alarm | |
| Total cold cranking amps | |
| Operator station | |
| Rollover protective structure, OOS | Rigid - foldable - telescopic Foldable, two-post Platform - flat/straddle Flat Gearshift location - console/floor Floor |
| Seat | Standard: Mechanical Optional: Air Ride or Premium Air Ride |
| Cab suspension | |
| Instructional seat | Optional |
| Display | PowrReverser™: Automotive-style light-emitting diode (LED) instrument cluster PowrQuad™ PLUS/Powr8™: Digital Dash Display with three liquid crystal displays (LCDs) |
| Radio | Optional |
| Inner cab volume | |
| dB(A) rating | 78 dBA |
| Cab glass area | |
| Safety glass rating | |
| Front visibility | |
| Dimensions | |
| Wheelbase | 2WD and MFWD: 2350 mm 92.5 in. |
| Overall width | |
| Overall length | OOS: 4081 mm 160 in. Cab: 4089 mm 161 in. |
| Overall height | |
| Drawbar clearance | |
| Front axle center | |
| Approximate shipping weight, Open;Cab | 2WD OOS: 3700 kg 8140 lb 2WD Cab: 3900 kg 8580 lb MFWD OOS: 3975 kg 8765 lb MFWD Cab: 4175 kg 9185 lb |
| Weight | |
| Base machine weight | PowrReverser™: 3764 kg (8,298 lb) PowrQuad™ PLUS/Powr8™: 3964 kg (8,740 lb) |
| Maximum ballast level | |
| Maximum permissible weight | |
| Capacities | |
| Crankcase oil volume | |
| Fuel tank | Open: 142.7 L 37.7 U.S. gal. 165.4 L 43.7 U.S. gal. |
| Diesel exhaust fluid (DEF) tank | 12.0 L 3.17 U.S. gal. |
| Cooling system | |
| Transmission-hydraulic system | |
| Serviceability | |
| Interval for engine oil change | |
| Interval for hydraulic/transmission oil change | |
| Interval for engine coolant change | |
| Loaders | |
| Loader | |
| Lift capacity at full height | |
| Maximum lift height | |
| Leveling type | |
| Precision AG | |
| Guidance | Optional: AutoTrac™ with AutoTrac Basic |
| Telematic | |
| Remote diagnostics | |
| Miscellaneous | |
| AutoTrac ready | Optional with PowrQuad™ PLUS/Powr8™ models |
| ISOBUS ready | Optional with PowrQuad™ PLUS/Powr8™ models |
| CommandCenter video inputs | |
| Immobilizer | |
| Side slope rating | |
| Uphill/downhill slope rating | |
| Country of manufacture | Pune, India |
